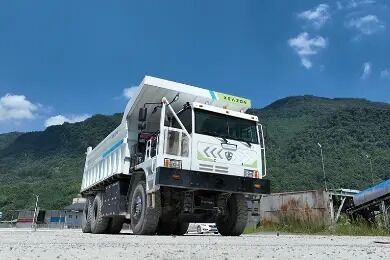

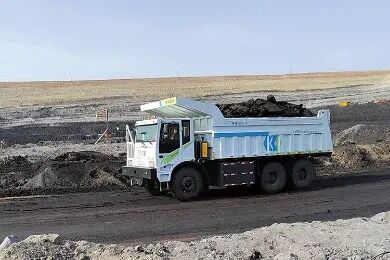

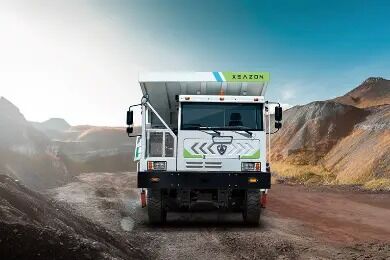

Electric Mining Truck with Long Drive Range Large Battery Capacity and Dual Motor Drive

Electric Mining Truck with Long Drive Range Large Battery Capacity and Dual Motor Drive

Long Drive Range Electric Mining Truck

Large Battery Capacity Electric Mining Truck

Dual Motor Drive Electric Mining Truck

উৎপত্তি স্থল:

চেংদু, চীন

পরিচিতিমুলক নাম:

ZEVAUTO

সাক্ষ্যদান:

ISO, CE

মডেল নম্বার:

Xz110EV

আমাদের সাথে যোগাযোগ
উদ্ধৃতির জন্য আবেদন
পণ্যের বিবরণ
পণ্যের নাম:
বৈদ্যুতিক খনির ট্রাক
টাইপ:
শূন্য নির্গমন
ফুল টাইপ:
বৈদ্যুতিক
মাত্রা (মিমি):
9950*3750*4200
হুইলবেস(মিমি):
4500+1750 মিমি
การส่ง:
দ্রুত 4 গতির এএমটি খনির ট্রাক ট্রান্সমিশন। গিয়ার: 6.508-1.000
সর্বাধিক গতি:
৪০ কিমি/ঘন্টা
স্থগিতাদেশ:
সামনের ওলিও-নিউম্যাটিক স্প্রিং সাসপেনশন + রিয়ার লিফ স্প্রিং + রিইনফোর্সড সুষম স্থগিতাদেশ
স্টিয়ারিং:
পূর্ণ জলবাহী স্টিয়ারিং + জরুরী স্টিয়ারিং
ড্রাইভ মোটর:
ডিস্ক হাব ডুয়াল-মোটর/লেগো (al চ্ছিক)
সাসপেনশন সিস্টেম:
ফ্রন্ট হাইড্রো-নিউম্যাটিক স্প্রিং সাসপেনশন/রিয়ার লিফ স্প্রিং ব্যালেন্স সাসপেনশন
ব্রেক সিস্টেম:
বৈদ্যুতিক ব্রেক + ড্রাম ব্রেক, এডি কারেন্ট রিটার্ডার (al চ্ছিক)
মোটর রেটেড/পিক পাওয়ার (কিলোওয়াট):
ডিস্ক হাব: 495/800; লেগো: 500/800
টায়ার:
16.00 আর 25 থ্রি-স্টার রেটিং (টেককিং)। অন্যান্য ব্র্যান্ডের টায়ার উপলব্ধ।
ধারক ভলিউম (m³):
42 (ফ্ল্যাট লোডিং)/45 (স্টোয়েজ লোডিং)
বিশেষভাবে তুলে ধরা:

Long Drive Range Electric Mining Truck

,

Large Battery Capacity Electric Mining Truck

,

Dual Motor Drive Electric Mining Truck

পেমেন্ট এবং শিপিং শর্তাবলী
ন্যূনতম চাহিদার পরিমাণ
1
প্যাকেজিং বিবরণ
নগ্ন প্যাকিং
ডেলিভারি সময়
25-40 কার্যদিবস
পরিশোধের শর্ত
টি/টি, এল/সি
যোগানের ক্ষমতা
25000 ইউনিট/প্রতি বছর
পণ্যের বর্ণনা
Electric Mining Truck with Full Hydraulic Steering

Zero-emission electric mining truck featuring long drive range and large 528kWh battery capacity, designed for efficient and environmentally friendly mining operations.

Product Specifications
Attribute Value
Product name Electric Mining Truck
Type Zero Emission
Fuel type Electric
Dimensions (mm) 9950*3750*4200
Wheelbase (mm) 4500+1750
Transmission FAST 4-speed AMT mining truck transmission. Gear: 6.508-1.000
Max speed 40km/h
Suspension Front oleo-pneumatic spring suspension + Rear leaf spring + Reinforced balanced suspension
Steering Full hydraulic steering + emergency steering
Drive motor Disc hub dual-motor/Lego (optional)
Brake system Electric brake + drum brake, eddy current retarder (optional)
Motor rated/peak power (kW) Disk hub: 495/800; Lego: 500/800
Tire 16.00R25 three-star rating (Techking). Other brands available.
Container volume (m³) 42 (flat loading)/45 (stowage loading)
Model XZ95EV Technical Parameters
Vehicle dimension (mm) 9400*3750*4000
Minimum ground clearance 400mm
Battery Capacity 528kWh, LiFePo4
Power motor Dual motor 900K: 495kW/2000rpm/2380Nm
Electric Mining Truck with Long Drive Range Large Battery Capacity and Dual Motor Drive 0
Key Advantages
  • Zero emission environmentally friendly operation
  • 60-70% lower energy costs compared to diesel
  • Reduced maintenance requirements
  • Lower center of gravity improves stability on slopes
  • Meets EPA Tier 5/EU Stage V emissions standards
  • Safe and reliable operation with strong power output
  • High operation efficiency and comfortable driving experience
Customization Options

Electric mining truck configurations available to meet specific operational requirements.

About ZEV

Headquartered in Chengdu, Sichuan province, China, ZEV is a group company specializing in the development, production, sales and market application of buses and coaches. Since its foundation in 2006, ZEV's culture of continuous innovation has made it a leading manufacturer in China.

With two production plants and annual capacity of 25,000 units, ZEV offers a 5m-18m product lineup of battery electric buses and coaches. In 2022, ZEV was awarded 825 units of 12m full electric city buses for Chengdu Transport Cooperation, with 400 units serving during the 31st FISU World University Games.
